TTK base class that computes the persistence diagram of a Delaunay-Rips filtration. More...

#include <DelaunayRipsPersistenceDiagram.h>

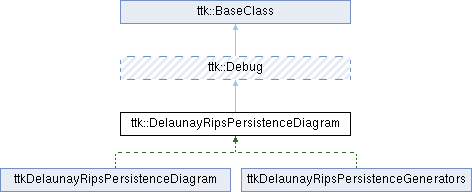

Inheritance diagram for ttk::DelaunayRipsPersistenceDiagram:

Public Member Functions
	DelaunayRipsPersistenceDiagram ()

int	execute (const rpd::PointCloud &points, rpd::MultidimensionalDiagram &ph) const
	Main entry point (without generators)

int	execute (const rpd::PointCloud &points, rpd::MultidimensionalDiagram &ph, std::vector< rpd::Generator1 > &generators1, std::vector< rpd::Generator2 > &generators2) const
	Main entry point (with generators)

Public Member Functions inherited from ttk::Debug
	Debug ()

	~Debug () override

virtual int	setDebugLevel (const int &debugLevel)

int	setWrapper (const Wrapper *wrapper) override

int	printMsg (const std::string &msg, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::vector< std::string > &msgs, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printErr (const std::string &msg, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cerr) const

int	printWrn (const std::string &msg, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cerr) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const int &threads, const double &memory, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const int &threads, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const debug::Priority &priority, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::vector< std::vector< std::string > > &rows, const debug::Priority &priority=debug::Priority::INFO, const bool hasHeader=true, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const debug::Separator &separator, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::INFO, std::ostream &stream=std::cout) const

int	printMsg (const debug::Separator &separator, const debug::Priority &priority, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const debug::Separator &separator, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::INFO, std::ostream &stream=std::cout) const

void	setDebugMsgPrefix (const std::string &prefix)

Public Member Functions inherited from ttk::BaseClass
	BaseClass ()

virtual	~BaseClass ()=default

int	getThreadNumber () const

virtual int	setThreadNumber (const int threadNumber)

Additional Inherited Members
Protected Member Functions inherited from ttk::Debug
int	printMsgInternal (const std::string &msg, const std::string &right, const std::string &filler, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsgInternal (const std::string &msg, const debug::Priority &priority, const debug::LineMode &lineMode, std::ostream &stream=std::cout) const

int	welcomeMsg (std::ostream &stream)

Protected Attributes inherited from ttk::Debug
int	debugLevel_

std::string	debugMsgPrefix_

std::string	debugMsgNamePrefix_

Protected Attributes inherited from ttk::BaseClass
bool	lastObject_

int	threadNumber_

Wrapper *	wrapper_

Static Protected Attributes inherited from ttk::Debug
static COMMON_EXPORTS debug::LineMode	lastLineMode = ttk::debug::LineMode::NEW

Detailed Description

TTK base class that computes the persistence diagram of a Delaunay-Rips filtration.

The DelaunayRipsPersistenceDiagram class provides a method to call the relevant code in order to compute the persistence diagram of the Delaunay- Rips filtration of the input point cloud.

Author: Mattéo Clémot matte.nosp@m.o.cl.nosp@m.emot@.nosp@m.univ.nosp@m.-lyon.nosp@m.1.fr

Date: July 2025.

This module defines the DelaunayRipsPersistenceDiagram class that takes a point cloud and computes the persistence diagram of its Delaunay-Rips filtration. It can also compute 1-dimensional and 2-dimensional persistence generators for point clouds in R2 and R3.

See also: ttkDelaunayRipsPersistenceDiagram.cpp for a usage example.

Online examples:

DelaunayRips Persistence example

Definition at line 37 of file DelaunayRipsPersistenceDiagram.h.

Constructor & Destructor Documentation

◆ DelaunayRipsPersistenceDiagram()

ttk::DelaunayRipsPersistenceDiagram::DelaunayRipsPersistenceDiagram ( )

Definition at line 5 of file DelaunayRipsPersistenceDiagram.cpp.

Member Function Documentation

◆ execute() [1/2]

int ttk::DelaunayRipsPersistenceDiagram::execute	(	const rpd::PointCloud &	points,
		rpd::MultidimensionalDiagram &	ph ) const

Main entry point (without generators)

Parameters

[in]	points	Input point cloud
[out]	ph	Persistence diagram

Definition at line 10 of file DelaunayRipsPersistenceDiagram.cpp.

◆ execute() [2/2]

int ttk::DelaunayRipsPersistenceDiagram::execute	(	const rpd::PointCloud &	points,
		rpd::MultidimensionalDiagram &	ph,
		std::vector< rpd::Generator1 > &	generators1,
		std::vector< rpd::Generator2 > &	generators2 ) const

Main entry point (with generators)

Parameters

[in]	points	Input point cloud
[out]	ph	Persistence diagram
[out]	generators1	1-dimensional persistent generators
[out]	generators2	2-dimensional persistent generators

Definition at line 51 of file DelaunayRipsPersistenceDiagram.cpp.

The documentation for this class was generated from the following files:

/home/julien/Pro/git/github/thomas/ttk-dani/core/base/delaunayRipsPersistenceDiagram/DelaunayRipsPersistenceDiagram.h
/home/julien/Pro/git/github/thomas/ttk-dani/core/base/delaunayRipsPersistenceDiagram/DelaunayRipsPersistenceDiagram.cpp
