TTK VTK-filter for the computation of vector field weight curves. More...

#include <ttkVectorWeightCurve.h>

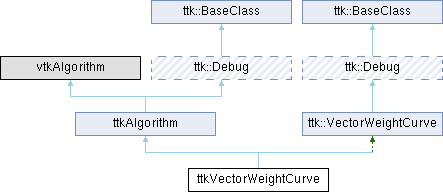

Inheritance diagram for ttkVectorWeightCurve:

Public Types
typedef ttkAlgorithm	Superclass

Public Types inherited from ttkAlgorithm
typedef vtkAlgorithm	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

vtkTable *	GetOutput ()

vtkTable *	GetOutput (int)

virtual void	SetDisplayOrbits (bool)

virtual bool	GetDisplayOrbits ()

virtual void	SetDisplayExtrema (bool)

virtual bool	GetDisplayExtrema ()

virtual void	SetReverseFullOrbit (bool)

virtual bool	GetReverseFullOrbit ()

Public Member Functions inherited from ttkAlgorithm
void	UpdateThreadNumber ()

void	SetThreadNumber (int threadNumber)

void	SetUseAllCores (bool useAllCores)

void	SetDebugLevel (int debugLevel)

void	SetCompactTriangulationCacheSize (float cacheSize)

vtkDataArray *	GetOptionalArray (const bool &enforceArrayIndex, const int &arrayIndex, const std::string &arrayName, vtkDataSet *const inputData, const int &inputPort=0)

vtkDataArray *	GetOrderArray (vtkDataSet const inputData, const int scalarArrayIdx, ttk::Triangulation triangulation, const bool getGlobalOrder=false, const int orderArrayIdx=0, const bool enforceOrderArrayIdx=false)

vtkDataArray *	checkForGlobalAndComputeOrderArray (vtkDataSet const inputData, vtkDataArray scalarArray, const int scalarArrayIdx, const bool getGlobalOrder, vtkDataArray orderArray, ttk::Triangulation triangulation, const bool enforceOrderArrayIdx)

vtkDataArray *	ComputeOrderArray (vtkDataSet const inputData, vtkDataArray scalarArray, const int scalarArrayIdx, const bool getGlobalOrder, vtkDataArray oldOrderArray, ttk::Triangulation triangulation)

ttk::SimplexId *	GetIdentifierArrayPtr (const bool &enforceArrayIndex, const int &arrayIndex, const std::string &arrayName, vtkDataSet *const inputData, std::vector< ttk::SimplexId > &spareStorage, const int inputPort=0, const bool printErr=true)

ttk::Triangulation *	GetTriangulation (vtkDataSet *dataSet)

int	ProcessRequest (vtkInformation request, vtkInformationVector inputVectors, vtkInformationVector outputVector) override

vtkDataSet *	GetOutput ()

vtkDataSet *	GetOutput (int)

void	SetInputData (vtkDataSet *)

void	SetInputData (int, vtkDataSet *)

void	AddInputData (vtkDataSet *)

void	AddInputData (int, vtkDataSet *)

template<typename inputType>
int	checkEmptyMPIInput (inputType *input)
	This method tests whether the input is a nullptr. If the computation is being done on multiple processes, it is possible that the domain of one process or more is empty, but not others, therefore in that particular case the rest of the filter will not be computed but an error message will not be sent.

Public Member Functions inherited from ttk::Debug
	Debug ()

	~Debug () override

virtual int	setDebugLevel (const int &debugLevel)

int	setWrapper (const Wrapper *wrapper) override

int	printMsg (const std::string &msg, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::vector< std::string > &msgs, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printErr (const std::string &msg, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cerr) const

int	printWrn (const std::string &msg, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cerr) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const int &threads, const double &memory, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const int &threads, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const debug::Priority &priority, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::vector< std::vector< std::string > > &rows, const debug::Priority &priority=debug::Priority::INFO, const bool hasHeader=true, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const debug::Separator &separator, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::INFO, std::ostream &stream=std::cout) const

int	printMsg (const debug::Separator &separator, const debug::Priority &priority, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const debug::Separator &separator, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::INFO, std::ostream &stream=std::cout) const

void	setDebugMsgPrefix (const std::string &prefix)

Public Member Functions inherited from ttk::BaseClass
	BaseClass ()

virtual	~BaseClass ()=default

int	getThreadNumber () const

virtual int	setThreadNumber (const int threadNumber)

Static Public Member Functions
static ttkVectorWeightCurve *	New ()

static int	IsTypeOf (const char *type)

static ttkVectorWeightCurve *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from ttkAlgorithm
static ttkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static ttkAlgorithm *	SafeDownCast (vtkObject *o)

static std::string	GetOrderArrayName (vtkDataArray *const array)

static vtkInformationIntegerKey *	SAME_DATA_TYPE_AS_INPUT_PORT ()

Protected Member Functions
	ttkVectorWeightCurve ()

	~ttkVectorWeightCurve () override=default

int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

int	FillInputPortInformation (int port, vtkInformation *info) override

int	FillOutputPortInformation (int port, vtkInformation *info) override

Protected Member Functions inherited from ttkAlgorithm
	ttkAlgorithm ()

	~ttkAlgorithm () override

void	MPIGhostPipelinePreconditioning (vtkDataSet *input)

void	MPIPipelinePreconditioning (vtkDataSet input, std::vector< int > &neighbors, std::map< int, int > &neighToId, ttk::Triangulation triangulation=nullptr)

bool	checkGlobalIdValidity (ttk::LongSimplexId globalIds, ttk::SimplexId simplexNumber, unsigned char ghost, int *rankArray)

int	GenerateGlobalIds (vtkDataSet *input, std::unordered_map< ttk::SimplexId, ttk::SimplexId > &vertGtoL, std::vector< int > &neighborRanks, std::map< int, int > &neighborsToId)

void	MPITriangulationPreconditioning (ttk::Triangulation triangulation, vtkDataSet input)

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVectors, vtkInformationVector outputVector)

virtual int	RequestInformation (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestUpdateTime (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestUpdateTimeDependentInformation (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestUpdateExtent (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestDataNotGenerated (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestData (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

int	FillInputPortInformation (int ttkNotUsed(port), vtkInformation *ttkNotUsed(info)) override

int	FillOutputPortInformation (int ttkNotUsed(port), vtkInformation *ttkNotUsed(info)) override

Protected Member Functions inherited from ttk::Debug
int	printMsgInternal (const std::string &msg, const std::string &right, const std::string &filler, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsgInternal (const std::string &msg, const debug::Priority &priority, const debug::LineMode &lineMode, std::ostream &stream=std::cout) const

int	welcomeMsg (std::ostream &stream)

Protected Member Functions inherited from ttk::VectorWeightCurve
	VectorWeightCurve ()

void	UpdateTraceFullOrbits ()

Additional Inherited Members
Protected Attributes inherited from ttkAlgorithm
float	CompactTriangulationCacheSize {0.2f}

Protected Attributes inherited from ttk::Debug
int	debugLevel_

std::string	debugMsgPrefix_

std::string	debugMsgNamePrefix_

Protected Attributes inherited from ttk::BaseClass
bool	lastObject_

int	threadNumber_

Wrapper *	wrapper_

Protected Attributes inherited from ttk::VectorWeightCurve
VectorSimplification	vs_ {}

bool	DisplayOrbits {false}

bool	DisplayExtrema {false}

bool	ReverseFullOrbit {true}

Static Protected Attributes inherited from ttk::Debug
static COMMON_EXPORTS debug::LineMode	lastLineMode = ttk::debug::LineMode::NEW

Detailed Description

TTK VTK-filter for the computation of vector field weight curves.

Author: Tanner Finken; Josh A. Levine

Date: 2024.

This filter takes a 2D vector field as input and computes the number of pairs as a function of weight (i.e. the number of pairs whose simplification weight is higher than a threshold).

These curves provide useful visual clues in order to fine-tune simplification thresholds of a discrete vector field.

Parameters

Input	Input Vector Field
Output	Table giving the number of all simplified pairs as a function of weight(simplifying value) (vtkTable)

Related publication
"Localized Evaluation for Constructing Discrete Vector Fields"
Tanner Finken, Julien Tierny, Joshua A. Levine
IEEE VIS 2024.

Online examples:

Discrete Vector Field Topology example

Definition at line 45 of file ttkVectorWeightCurve.h.

Member Typedef Documentation

◆ Superclass

typedef ttkAlgorithm ttkVectorWeightCurve::Superclass

Definition at line 52 of file ttkVectorWeightCurve.h.

Constructor & Destructor Documentation

◆ ttkVectorWeightCurve()

ttkVectorWeightCurve::ttkVectorWeightCurve ( )

protected

Definition at line 11 of file ttkVectorWeightCurve.cpp.

◆ ~ttkVectorWeightCurve()

ttkVectorWeightCurve::~ttkVectorWeightCurve ( )

overrideprotecteddefault

Member Function Documentation

◆ FillInputPortInformation()

int ttkVectorWeightCurve::FillInputPortInformation	(	int	port,
		vtkInformation *	info )

overrideprotected

Definition at line 24 of file ttkVectorWeightCurve.cpp.

◆ FillOutputPortInformation()

int ttkVectorWeightCurve::FillOutputPortInformation	(	int	port,
		vtkInformation *	info )

overrideprotected

Definition at line 33 of file ttkVectorWeightCurve.cpp.

◆ GetClassName()

virtual const char * ttkVectorWeightCurve::GetClassName ( )

virtual

Reimplemented from ttkAlgorithm.

◆ GetDisplayExtrema()

virtual bool ttkVectorWeightCurve::GetDisplayExtrema ( )

virtual

◆ GetDisplayOrbits()

virtual bool ttkVectorWeightCurve::GetDisplayOrbits ( )

virtual

◆ GetOutput() [1/2]

vtkTable * ttkVectorWeightCurve::GetOutput ( )

Definition at line 16 of file ttkVectorWeightCurve.cpp.

◆ GetOutput() [2/2]

vtkTable * ttkVectorWeightCurve::GetOutput ( int port )

Definition at line 20 of file ttkVectorWeightCurve.cpp.

◆ GetReverseFullOrbit()

virtual bool ttkVectorWeightCurve::GetReverseFullOrbit ( )

virtual

◆ IsA()

virtual int ttkVectorWeightCurve::IsA ( const char * type )

virtual

Reimplemented from ttkAlgorithm.

◆ IsTypeOf()

static int ttkVectorWeightCurve::IsTypeOf ( const char * type )

static

◆ New()

static ttkVectorWeightCurve * ttkVectorWeightCurve::New ( )

static

◆ RequestData()

int ttkVectorWeightCurve::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector )

overrideprotected

Definition at line 108 of file ttkVectorWeightCurve.cpp.

◆ SafeDownCast()

static ttkVectorWeightCurve * ttkVectorWeightCurve::SafeDownCast ( vtkObject * o )

static

◆ SetDisplayExtrema()

virtual void ttkVectorWeightCurve::SetDisplayExtrema ( bool )

virtual

◆ SetDisplayOrbits()

virtual void ttkVectorWeightCurve::SetDisplayOrbits ( bool )

virtual

◆ SetReverseFullOrbit()

virtual void ttkVectorWeightCurve::SetReverseFullOrbit ( bool )

virtual

The documentation for this class was generated from the following files:

/home/julien/Pro/git/github/thomas/ttk-dani/core/vtk/ttkVectorWeightCurve/ttkVectorWeightCurve.h
/home/julien/Pro/git/github/thomas/ttk-dani/core/vtk/ttkVectorWeightCurve/ttkVectorWeightCurve.cpp
