TTK VTK-filter that wraps the ttk::DelaunayRipsPersistenceDiagram module. More...

#include <ttkDelaunayRipsPersistenceDiagram.h>

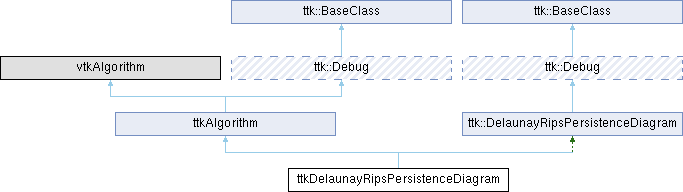

Inheritance diagram for ttkDelaunayRipsPersistenceDiagram:

Public Types
typedef ttkAlgorithm	Superclass

Public Types inherited from ttkAlgorithm
typedef vtkAlgorithm	Superclass

Public Member Functions
virtual const char *	GetClassName ()

virtual int	IsA (const char *type)

void	SetScalarFields (const std::string &s)

void	ClearScalarFields ()

virtual void	SetKeepAllDataArrays (bool)

virtual bool	GetKeepAllDataArrays ()

virtual void	SetSelectFieldsWithRegexp (bool)

virtual bool	GetSelectFieldsWithRegexp ()

virtual void	SetRegexpString (const std::string &)

virtual std::string	GetRegexpString ()

Public Member Functions inherited from ttkAlgorithm
void	UpdateThreadNumber ()

void	SetThreadNumber (int threadNumber)

void	SetUseAllCores (bool useAllCores)

void	SetDebugLevel (int debugLevel)

void	SetCompactTriangulationCacheSize (float cacheSize)

vtkDataArray *	GetOptionalArray (const bool &enforceArrayIndex, const int &arrayIndex, const std::string &arrayName, vtkDataSet *const inputData, const int &inputPort=0)

vtkDataArray *	GetOrderArray (vtkDataSet const inputData, const int scalarArrayIdx, ttk::Triangulation triangulation, const bool getGlobalOrder=false, const int orderArrayIdx=0, const bool enforceOrderArrayIdx=false)

vtkDataArray *	checkForGlobalAndComputeOrderArray (vtkDataSet const inputData, vtkDataArray scalarArray, const int scalarArrayIdx, const bool getGlobalOrder, vtkDataArray orderArray, ttk::Triangulation triangulation, const bool enforceOrderArrayIdx)

vtkDataArray *	ComputeOrderArray (vtkDataSet const inputData, vtkDataArray scalarArray, const int scalarArrayIdx, const bool getGlobalOrder, vtkDataArray oldOrderArray, ttk::Triangulation triangulation)

ttk::SimplexId *	GetIdentifierArrayPtr (const bool &enforceArrayIndex, const int &arrayIndex, const std::string &arrayName, vtkDataSet *const inputData, std::vector< ttk::SimplexId > &spareStorage, const int inputPort=0, const bool printErr=true)

ttk::Triangulation *	GetTriangulation (vtkDataSet *dataSet)

int	ProcessRequest (vtkInformation request, vtkInformationVector inputVectors, vtkInformationVector outputVector) override

vtkDataSet *	GetOutput ()

vtkDataSet *	GetOutput (int)

void	SetInputData (vtkDataSet *)

void	SetInputData (int, vtkDataSet *)

void	AddInputData (vtkDataSet *)

void	AddInputData (int, vtkDataSet *)

template<typename inputType>
int	checkEmptyMPIInput (inputType *input)
	This method tests whether the input is a nullptr. If the computation is being done on multiple processes, it is possible that the domain of one process or more is empty, but not others, therefore in that particular case the rest of the filter will not be computed but an error message will not be sent.

Public Member Functions inherited from ttk::Debug
	Debug ()

	~Debug () override

virtual int	setDebugLevel (const int &debugLevel)

int	setWrapper (const Wrapper *wrapper) override

int	printMsg (const std::string &msg, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::vector< std::string > &msgs, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printErr (const std::string &msg, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cerr) const

int	printWrn (const std::string &msg, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cerr) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const int &threads, const double &memory, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const double &time, const int &threads, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::PERFORMANCE, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const double &progress, const debug::Priority &priority, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::vector< std::vector< std::string > > &rows, const debug::Priority &priority=debug::Priority::INFO, const bool hasHeader=true, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const debug::Separator &separator, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::INFO, std::ostream &stream=std::cout) const

int	printMsg (const debug::Separator &separator, const debug::Priority &priority, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsg (const std::string &msg, const debug::Separator &separator, const debug::LineMode &lineMode=debug::LineMode::NEW, const debug::Priority &priority=debug::Priority::INFO, std::ostream &stream=std::cout) const

void	setDebugMsgPrefix (const std::string &prefix)

Public Member Functions inherited from ttk::BaseClass
	BaseClass ()

virtual	~BaseClass ()=default

int	getThreadNumber () const

virtual int	setThreadNumber (const int threadNumber)

Static Public Member Functions
static ttkDelaunayRipsPersistenceDiagram *	New ()

static int	IsTypeOf (const char *type)

static ttkDelaunayRipsPersistenceDiagram *	SafeDownCast (vtkObject *o)

Static Public Member Functions inherited from ttkAlgorithm
static ttkAlgorithm *	New ()

static int	IsTypeOf (const char *type)

static ttkAlgorithm *	SafeDownCast (vtkObject *o)

static std::string	GetOrderArrayName (vtkDataArray *const array)

static vtkInformationIntegerKey *	SAME_DATA_TYPE_AS_INPUT_PORT ()

Protected Member Functions
	ttkDelaunayRipsPersistenceDiagram ()

	~ttkDelaunayRipsPersistenceDiagram () override=default

int	FillInputPortInformation (int port, vtkInformation *info) override

int	FillOutputPortInformation (int port, vtkInformation *info) override

int	RequestData (vtkInformation request, vtkInformationVector inputVector, vtkInformationVector outputVector) override

Protected Member Functions inherited from ttkAlgorithm
	ttkAlgorithm ()

	~ttkAlgorithm () override

void	MPIGhostPipelinePreconditioning (vtkDataSet *input)

void	MPIPipelinePreconditioning (vtkDataSet input, std::vector< int > &neighbors, std::map< int, int > &neighToId, ttk::Triangulation triangulation=nullptr)

bool	checkGlobalIdValidity (ttk::LongSimplexId globalIds, ttk::SimplexId simplexNumber, unsigned char ghost, int *rankArray)

int	GenerateGlobalIds (vtkDataSet *input, std::unordered_map< ttk::SimplexId, ttk::SimplexId > &vertGtoL, std::vector< int > &neighborRanks, std::map< int, int > &neighborsToId)

void	MPITriangulationPreconditioning (ttk::Triangulation triangulation, vtkDataSet input)

virtual int	RequestDataObject (vtkInformation request, vtkInformationVector inputVectors, vtkInformationVector outputVector)

virtual int	RequestInformation (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestUpdateTime (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestUpdateTimeDependentInformation (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestUpdateExtent (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestDataNotGenerated (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

virtual int	RequestData (vtkInformation ttkNotUsed(request), vtkInformationVector ttkNotUsed(inputVectors), vtkInformationVector ttkNotUsed(outputVector))

int	FillInputPortInformation (int ttkNotUsed(port), vtkInformation *ttkNotUsed(info)) override

int	FillOutputPortInformation (int ttkNotUsed(port), vtkInformation *ttkNotUsed(info)) override

Protected Member Functions inherited from ttk::Debug
int	printMsgInternal (const std::string &msg, const std::string &right, const std::string &filler, const debug::Priority &priority=debug::Priority::INFO, const debug::LineMode &lineMode=debug::LineMode::NEW, std::ostream &stream=std::cout) const

int	printMsgInternal (const std::string &msg, const debug::Priority &priority, const debug::LineMode &lineMode, std::ostream &stream=std::cout) const

int	welcomeMsg (std::ostream &stream)

Protected Member Functions inherited from ttk::DelaunayRipsPersistenceDiagram
	DelaunayRipsPersistenceDiagram ()

int	execute (const rpd::PointCloud &points, rpd::MultidimensionalDiagram &ph) const
	Main entry point (without generators)

int	execute (const rpd::PointCloud &points, rpd::MultidimensionalDiagram &ph, std::vector< rpd::Generator1 > &generators1, std::vector< rpd::Generator2 > &generators2) const
	Main entry point (with generators)

Additional Inherited Members
Protected Attributes inherited from ttkAlgorithm
float	CompactTriangulationCacheSize {0.2f}

Protected Attributes inherited from ttk::Debug
int	debugLevel_

std::string	debugMsgPrefix_

std::string	debugMsgNamePrefix_

Protected Attributes inherited from ttk::BaseClass
bool	lastObject_

int	threadNumber_

Wrapper *	wrapper_

Static Protected Attributes inherited from ttk::Debug
static COMMON_EXPORTS debug::LineMode	lastLineMode = ttk::debug::LineMode::NEW

Detailed Description

TTK VTK-filter that wraps the ttk::DelaunayRipsPersistenceDiagram module.

Author: Mattéo Clémot matte.nosp@m.o.cl.nosp@m.emot@.nosp@m.univ.nosp@m.-lyon.nosp@m.1.fr

Date: September 2025.

VTK wrapping code for the ttk::DelaunayRipsPersistenceDiagram package.

Parameters

Input	Input table (vtkTable)
Output	PersistenceDiagram (vtkUnstructuredGrid)

This filter can be used as any other VTK filter (for instance, by using the sequence of calls SetInputData(), Update(), GetOutputDataObject()).

See the related ParaView example state files for usage examples within a VTK pipeline.

See also: ttk::DelaunayRipsPersistenceDiagram; ttkAlgorithm

Online examples:

DelaunayRips Persistence example

Definition at line 41 of file ttkDelaunayRipsPersistenceDiagram.h.

Member Typedef Documentation

◆ Superclass

typedef ttkAlgorithm ttkDelaunayRipsPersistenceDiagram::Superclass

Definition at line 54 of file ttkDelaunayRipsPersistenceDiagram.h.

Constructor & Destructor Documentation

◆ ttkDelaunayRipsPersistenceDiagram()

ttkDelaunayRipsPersistenceDiagram::ttkDelaunayRipsPersistenceDiagram ( )

protected

Definition at line 17 of file ttkDelaunayRipsPersistenceDiagram.cpp.

◆ ~ttkDelaunayRipsPersistenceDiagram()

ttkDelaunayRipsPersistenceDiagram::~ttkDelaunayRipsPersistenceDiagram ( )

overrideprotecteddefault

Member Function Documentation

◆ ClearScalarFields()

void ttkDelaunayRipsPersistenceDiagram::ClearScalarFields ( )

inline

Definition at line 61 of file ttkDelaunayRipsPersistenceDiagram.h.

◆ FillInputPortInformation()

int ttkDelaunayRipsPersistenceDiagram::FillInputPortInformation	(	int	port,
		vtkInformation *	info )

overrideprotected

Definition at line 22 of file ttkDelaunayRipsPersistenceDiagram.cpp.

◆ FillOutputPortInformation()

int ttkDelaunayRipsPersistenceDiagram::FillOutputPortInformation	(	int	port,
		vtkInformation *	info )

overrideprotected

Definition at line 32 of file ttkDelaunayRipsPersistenceDiagram.cpp.

◆ GetClassName()

virtual const char * ttkDelaunayRipsPersistenceDiagram::GetClassName ( )

virtual

Reimplemented from ttkAlgorithm.

◆ GetKeepAllDataArrays()

virtual bool ttkDelaunayRipsPersistenceDiagram::GetKeepAllDataArrays ( )

virtual

◆ GetRegexpString()

virtual std::string ttkDelaunayRipsPersistenceDiagram::GetRegexpString ( )

virtual

◆ GetSelectFieldsWithRegexp()

virtual bool ttkDelaunayRipsPersistenceDiagram::GetSelectFieldsWithRegexp ( )

virtual

◆ IsA()

virtual int ttkDelaunayRipsPersistenceDiagram::IsA ( const char * type )

virtual

Reimplemented from ttkAlgorithm.

◆ IsTypeOf()

static int ttkDelaunayRipsPersistenceDiagram::IsTypeOf ( const char * type )

static

◆ New()

static ttkDelaunayRipsPersistenceDiagram * ttkDelaunayRipsPersistenceDiagram::New ( )

static

◆ RequestData()

int ttkDelaunayRipsPersistenceDiagram::RequestData	(	vtkInformation *	request,
		vtkInformationVector **	inputVector,
		vtkInformationVector *	outputVector )

overrideprotected

Definition at line 41 of file ttkDelaunayRipsPersistenceDiagram.cpp.

◆ SafeDownCast()

static ttkDelaunayRipsPersistenceDiagram * ttkDelaunayRipsPersistenceDiagram::SafeDownCast ( vtkObject * o )

static

◆ SetKeepAllDataArrays()

virtual void ttkDelaunayRipsPersistenceDiagram::SetKeepAllDataArrays ( bool )

virtual

◆ SetRegexpString()

virtual void ttkDelaunayRipsPersistenceDiagram::SetRegexpString ( const std::string & )

virtual

◆ SetScalarFields()

void ttkDelaunayRipsPersistenceDiagram::SetScalarFields ( const std::string & s )

inline

Definition at line 56 of file ttkDelaunayRipsPersistenceDiagram.h.

◆ SetSelectFieldsWithRegexp()

virtual void ttkDelaunayRipsPersistenceDiagram::SetSelectFieldsWithRegexp ( bool )

virtual

The documentation for this class was generated from the following files:

/home/julien/Pro/git/github/thomas/ttk-dani/core/vtk/ttkDelaunayRipsPersistenceDiagram/ttkDelaunayRipsPersistenceDiagram.h
/home/julien/Pro/git/github/thomas/ttk-dani/core/vtk/ttkDelaunayRipsPersistenceDiagram/ttkDelaunayRipsPersistenceDiagram.cpp
